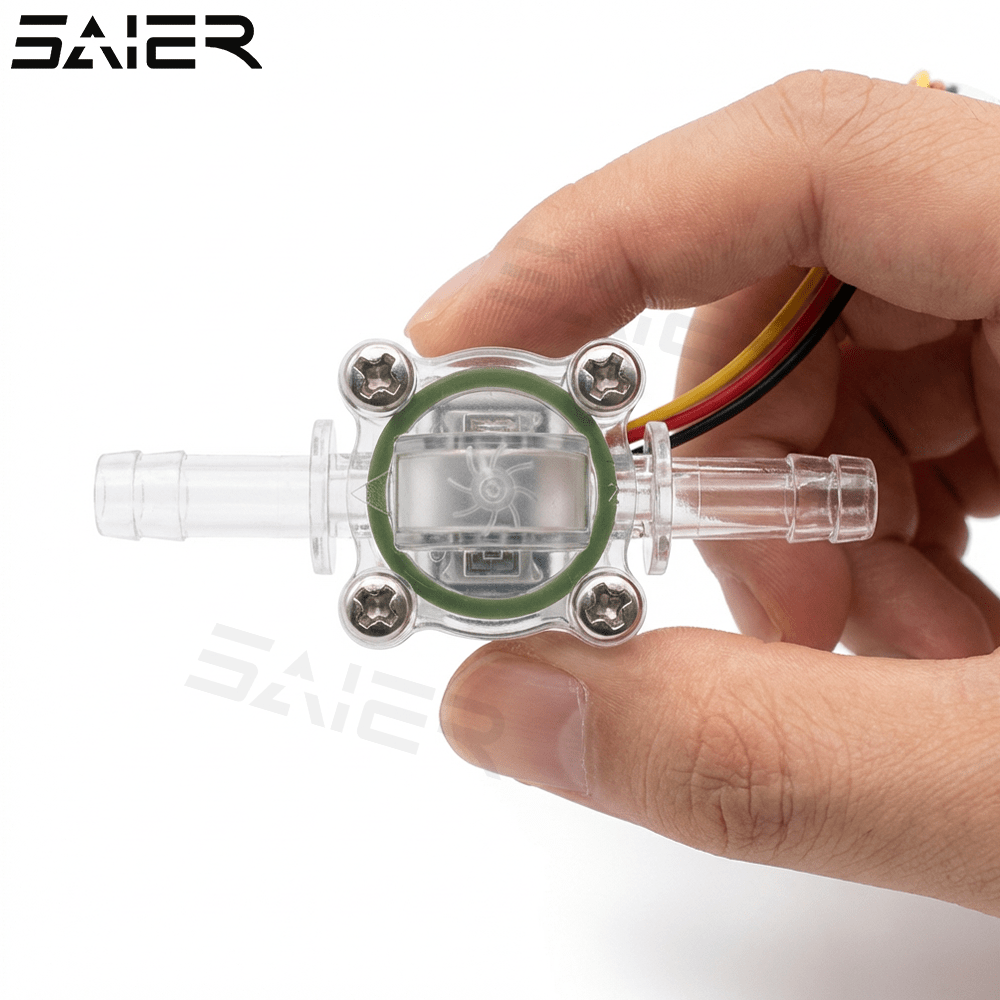

Achieve laboratory-grade precision in your fluid systems with the SAIER Optical Flow Meter. Unlike traditional magnetic hall sensors, this unit utilizes advanced photoelectric detection, effectively eliminating magnetic interference for stable signal output. Crafted from PCTG, a high-performance, BPA-free material, it offers superior chemical resistance and durability compared to standard PC/ABS, making it ideal for coffee machines, medical dosing, and water purifiers.

Designed with a 6mm ID barb for secure tubing connection, it handles pressures up to 1.0 MPa while maintaining accuracy in temperatures up to 60°C. Whether you need to measure ultra-low flows (0.02-0.4L/min) or standard dosing (0.2-3.0L/min), its NPN pulse output integrates seamlessly with any microcontroller (MCU/PLC).

رقم الموديل:SEN-GD06C-Optical Flow Meter

Signal Type: NPN Pulse

Flow Ranges Available:

• Model A (Micro Flow): 0.02 – 0.4 L/min (Ideal for precise dosing/dripping)
• Model B (Standard): 0.2 – 3.0 L/min (Ideal for continuous flow)

Pressure Resistance: ≤ 1.0 MPa

Materials:PCTG Body

Customization: Wire length and connector type can be customized upon request.

Installation direction：any direction

Pulses per Liter:F=(156Q+3)±10%/F=(1400Q-10)±10%
